SW-Sunligh

Solar light can be sterilized is a well-known knowledge. Our sunlight disinfection light source imitates the sunlight, it is a light source with high color productivity and on the same time with sterilization function as well. The light source contains special blue violet light which is friendly to people, but without harmful or unfriendly UVA / UVCs. Our sterilization anti-virus principle is that the porphyrin in the cells will produce and release active oxygen after absorbing the special wavebands light, then damage the cell wall of bacteria or the vesicle of the virus. Take the Covid virus for example, it is through the vesicle into cell, once the vesicle is broken, the virus will lose infectivity, this theory has been supported by academic papers.of spectra conducive to physiological rhythm, which is closely related to wake up, independent nervous system, gangliocytes.

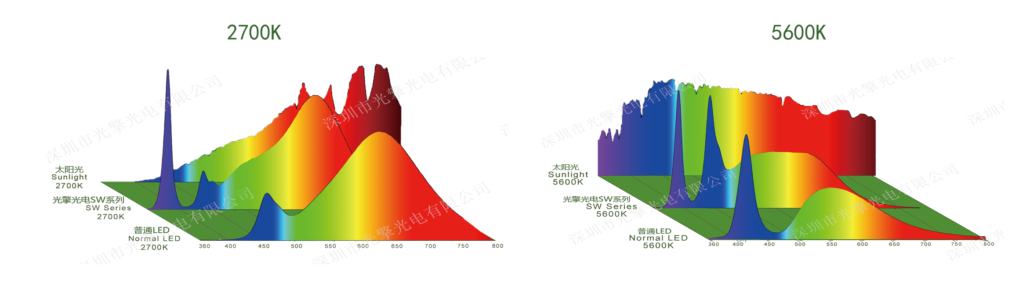

Sunlight disinfection light source Series at CCT 2700K and CCT 5600K

Mus sem erat curae laoreet.

Facilisi ornare quam ligula a magnis consectetur a a adipiscing condimentum etiam a blandit elementum suspendisse massa ullamcorper a ultrices condimentum ullamcorper parturient a tempor potenti adipiscing leo himenaeos habitant.A.

100%

In ullamcorper consectetur orci habitant vel.

85%

In ullamcorper consectetur orci habitant vel.

94%

In ullamcorper consectetur orci habitant vel.

97%

In ullamcorper consectetur orci habitant vel.

Technical Parameters

video

Product Selection Guide

Part No.	Power(W)		Lumen(lm) Tj=25℃		Vf(V)	If(mA)		Series Parallel	CCT(K)	CRI -Ra	CQS -Qa	光效(Tj=℃)
Part No.	Typ.	Max.	Typ.	Max.	Vf(V)	Typ.	Max.	Series Parallel	CCT(K)	CRI -Ra	CQS -Qa	(lm/W)
SW2835-0.2W-27**FR90	0.2	1	21	101	9	20	110	3S1P	2700	90	90	110
SW2835-0.2W-30**FR90	0.2	1	22	103		20	110		3000	90	90	115
SW2835-0.2W-40**FR90	0.2	1	22	103		20	110		4000	90	90	120
SW2835-0.2W-50**FR90	0.2	1	22	103		20	110		5000	90	90	120
SW2835-0.2W-56**FR90	0.2	1	21	101		20	110		5600	90	90	115
SW2835-0.2W-65**FR90	0.2	1	21	101		20	110		6500	90	90	115
SW2835-0.2W-65**FR90	6	11	600	913	36	160	300	12S2P	2700	90	90	100
SW1313-06W-30**FR98	6	11	630	935		160	300		3000	90	90	105
SW1313-06W-40**FR98	6	11	660	968		160	300		4000	90	90	110
SW1313-06W-50**FR98	6	11	660	968		160	300		5000	90	90	110
SW1313-06W-56**FR98	6	11	630	935		160	300		5600	90	90	105
SW1313-06W-65**FR98	6	11	630	935		160	300		6500	90	90	105
SW1313-09W-27**FR98	9	16	900	1328	36	250	450	12S3P	2700	90	90	100
SW1313-09W-30**FR98	9	16	945	1360		250	450		3000	90	90	105
SW1313-09W-40**FR98	9	16	990	1408		250	450		4000	90	90	110
SW1313-09W-50**FR98	9	16	990	1408		250	450		5000	90	90	110
SW1313-09W-56**FR98	9	16	945	1360		250	450		5600	90	90	105
SW1313-09W-65**FR98	9	16	945	1360		250	450		6500	90	90	105
SW1919-18W-27**FR98	18	32	1800	2560	36	500	900	12S6P	2700	90	90	100
SW1919-18W-30**FR98	18	32	1890	2656		500	900		3000	90	90	105
SW1919-18W-40**FR98	18	32	1980	2816		500	900		4000	90	90	110
SW1919-18W-50**FR98	18	32	1980	2816		500	900		5000	90	90	110
SW1919-18W-56**FR98	18	32	1890	2656		500	900		5600	90	90	105
SW1919-18W-65**FR98	18	32	1890	2656		500	900		6500	90	90	105
SW1919-36W-27**FR98	36	65	3600	5395	36	1000	1800	12S12P	2700	90	90	100
SW1919-36W-30**FR98	36	65	3780	5525		1000	1800		3000	90	90	105
SW1919-36W-40**FR98	36	65	3960	5720		1000	1800		4000	90	90	110
SW1919-36W-50**FR98	36	65	3960	5720		1000	1800		5000	90	90	110
SW1919-36W-56**FR98	36	65	3780	5525		1000	1800		5600	90	90	105
SW1919-36W-65**FR9	36	65	3780	5525		1000	1800		6500	90	90	105
