Solar Spectrum ＆ Black Body Radiation Spectrum

The SSLECO Daylight series consists of near solar spectral light sources with color temperature above 5000K and black-body radiation spectral light sources with color temperature below 4000K.

The formation of the earth’s biology, reproductive evolution, and the emergence of human civilization development is all dependent on the
sun light invariably. The sun light not only provides vision lighting to all the creatures, more importantly is to provide basic energy source
for the survival and reproduction of the earth’s biology. Based on the existence of evolution reason, the light of the solar spectrum is the
most ideal artificial lighting light source. Besides sun light, the black-body radiation lighting has also been facilitated the evolution of human
civilization, is an important complement of sun light.

For the Modern humans, there is a big chance to stay in the classroom, the office building, and living at home in a sunny day, we may use
artificial lighting for whole daytime and night. Though these artificial lighting can satisfy people’s visional illumination need, but the indoor light
is lack of some spectrum which exists in the full spectrum natural light, which will cause some health problems to human beings gradually,
and it is hard to meet people’s both physiological and psychological needs as well.

Therefore, we are pioneering the concept of physical lighting, and we believe that lighting should meet both the needs of Visional
lighting and Physiological lighting, which we call it Health lighting for short.

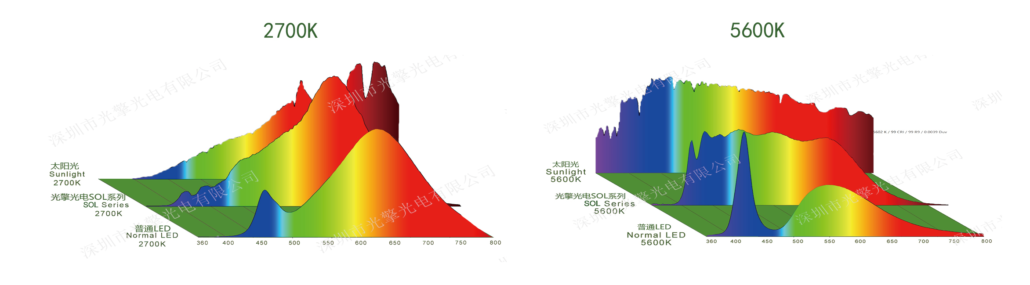

SSLECO Daylight Typical Spectrum and parameters at CCT 2700K and CCT 5600K

Mus sem erat curae laoreet.

Facilisi ornare quam ligula a magnis consectetur a a adipiscing condimentum etiam a blandit elementum suspendisse massa ullamcorper a ultrices condimentum ullamcorper parturient a tempor potenti adipiscing leo himenaeos habitant.A.

100%

In ullamcorper consectetur orci habitant vel.

85%

In ullamcorper consectetur orci habitant vel.

94%

In ullamcorper consectetur orci habitant vel.

97%

In ullamcorper consectetur orci habitant vel.

Technical Parameters

video

Product Selection Guide

Part No.	Power(W)		Lumen(lm) Tj=25℃		Vf(V)	If(mA)		Series Parallel	CCT(K)	CRI -Ra	CQS -Qa	Rf	Rg	TLCI	光效(Tj=℃)
Part No.	Typ.	Max.	Typ.	Max.	Vf(V)	Typ.	Max.	Series Parallel	CCT(K)	CRI -Ra	CQS -Qa	Rf	Rg	TLCI	(lm/W)
SOL5054-01W-27**FR98	1	3	110	300	36	30	150	12S1P	2700	99	98	95	99-101	99	110
SOL5054-01W-30**FR98	1	3	110	300		30	150		3000	99	97	97	99-101	99	110
SOL5054-01W-40**FR98	1	3	120	330		30	150		4000	99	99	98	99-101	99	120
SOL5054-01W-50**FR98	1	3	125	345		30	150		5000	99	99	98	99-101	99	125
SOL5054-01W-56**FR98	1	3	125	345		30	150		5600	99	99	98	99-101	99	125
SOL1313-06W-27**FR98	6	11	540	770	36	160	300	12S2P	2700	99	98	95	99-101	99	90
SOL1313-06W-30**FR98	6	11	570	803		160	300		3000	99	97	97	99-101	99	95
SOL1313-06W-40**FR98	6	11	600	825		160	300		4000	99	99	98	99-101	99	100
SOL1313-06W-50**FR98	6	11	630	880		160	300		5000	99	99	98	99-101	99	105
SOL1313-06W-56**FR98	6	11	630	880		160	300		5600	99	99	98	99-101	99	105
SOL1313-09W-27**FR98	9	16	810	1120	36	250	450	12S3P	2700	99	98	95	99-101	99	90
SOL1313-09W-30**FR98	9	16	855	1168		250	450		3000	99	97	97	99-101	99	95
SOL1313-09W-40**FR98	9	16	900	1216		250	450		4000	99	99	98	99-101	99	100
SOL1313-09W-50**FR98	9	16	945	1296		250	450		5000	99	99	98	99-101	99	105
SOL1313-09W-56**FR98	9	16	945	1296		250	450		5600	99	99	98	99-101	99	105
SOL1919-18W-27**FR98	18	32	1620	2240	36	500	900	12S6P	2700	99	98	95	99-101	99	90
SOL1919-18W-30**FR98	18	32	1710	2336		500	900		3000	99	97	97	99-101	99	95
SOL1919-18W-40**FR98	18	32	1800	2432		500	900		4000	99	99	98	99-101	99	100
SOL1919-18W-50**FR98	18	32	1890	2592		500	900		5000	99	99	98	99-101	99	105
SOL1919-18W-56**FR98	18	32	1890	2592		500	900		5600	99	99	98	99-101	99	105
SOL1919-36W-27**FR98	36	65	3240	4550	36	1000	1800	12S12P	2700	99	98	95	99-101	99	90
SOL1919-36W-30**FR98	36	65	3420	4745		1000	1800		3000	99	97	97	99-101	99	95
SOL1919-36W-40**FR98	36	65	3600	4940		1000	1800		4000	99	99	98	99-101	99	100
SOL1919-36W-50**FR98	36	65	3780	5265		1000	1800		5000	99	99	98	99-101	99	105
SOL1919-36W-56**FR98	36	65	3780	5265		1000	1800		5600	99	99	98	99-101	99	105
